Motor vehicle signal lamp
The product description
On a red light, full screen in the middle of yellow full screen containing the timer, the timer is"8, according to the word "word for the green lights full screen
Product features
The indicators meet the People's Republic of ChinaGB14887-2011Standard for road traffic lights.
Super bright imported four elementsLEDThe wick, uniform colour, perspective, visual range yuan, long service life.
Adopt silicon rubber seal, dustproof, waterproof, flame retardant, effectively put an end to all kinds of hidden dangers.

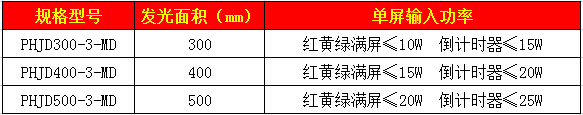

ginseng The number
gauge G: phi300, phi400, phi500
Lamp shell material:PC, aluminum alloy, die-casting aluminum
Installation method: horizontal, vertical loading
Light life: p10Thousands of hours
Center wavelength: red625nm, yellow590nm, green505nm
Resistance to A:- 40℃~ + 85℃
Working voltage:DC12V/24V,AC(220Plus or minus20%)V(a) optional
Visual Angle: p30°
Visual range: p500m
Warm performance: air relative humidity5%~95%(no condensate)
Insulation resistance: >10M omega.
Wind loading:145m/h
Enclosure protection grade:IP53
